Motorhome Chassis

2023 Ford Upfit motorhome chassis

Motorhome Chassis

For impressive horsepower and torque, premium features and components, rely on the capable Class A and Class C Motorhome Chassis.

Class A Motorhome Chassis

  • Choice of wheelbases from 158 inches to 252 inches
  • New standard safety features - Auto Headlight Activation provision
  • New Instrument cluster
  • Tilt/Telescoping Steering column and wheel
  • 210-amp alternator standard
  • Optional 240-amp heavy duty alternator
  • 80-gallon fuel tank
  • Suspension designed to optimize ride and enhance weight distribution characteristics
  • Front and rear four-wheel anti-lock disc brakes
  • 22,000-, 24,000- and 26,000-lb. GVWR chassis equipped with polished aluminum wheels
  • 7.3L V8 Gas Engine (350 horsepower/468 lb.-ft. of torque)
  • TorqShift® 6-speed automatic Transmission with Tow/Haul mode
Class A Motorhome Chassis
E-Series Class C Motorhome Cutaway

E-Series Class C Motorhome Cutaway

  • 7.3L V8 Gas Engine
  • TorqShift® 6-speed automatic Transmission with Tow/Haul mode
  • New standard safety features - Traction Control, Auto Headlight Activation, Electronic Stability Control
  • Optional Driver-Assist technology - Automatic Emergency Braking, Lane Departure Warning, Forward Collision Warning, Post-Impact Braking, Adaptive Cruise Control, Distance Alert, Auto High Beam Control
  • 78 amp-hr battery
  • 210-amp alternator
  • 240-amp heavy duty alternator - Optional
  • Dual alternator (240/157 amp) - Optional
  • Tilt/Telescoping steering wheel
  • Full-steel frame chassis and aft-of-rear-axle fuel tank location
  • Cab mounting system and sock-absorbing body mounts
  • Twin I-Beam independent front suspension

Transit Cutaway

  • 3 wheelbases
  • Up to 6,400 pounds payload capacity
  • Gross Vehicle Weight Rating (GVWR) from 9,000 lbs. to 11,000 lbs.
  • Gross Combined Weight Rating (GCWR) up to 15,000 lbs.
  • New 10-Speed Automatic Transmission with Selectshift
  • Tow/Haul mode included with Motorhome Prep package
Transit Cutaway Chassis

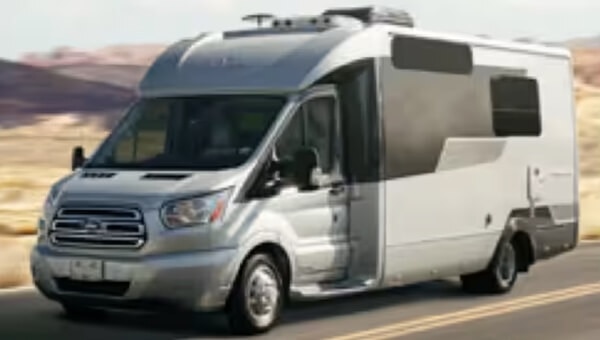

Transit Passenger Van

Transit Passenger Van

  • 3 body lengths
  • 3 roof heights
  • Gross Vehicle Weight Rating (GVWR) from 9,000 lbs. to 10,360 lbs.
  • Gross Combined Weight Rating (GCWR) up to 12,600 lbs.
  • New 10-Speed Automatic Transmission with Selectshift
  • 4 user-defined Upfitter Switches
